Sprockets for Drag Link DIN Chain
Home > Conveyor Chains > Sprockets > Sprockets for Drag Link DIN Chain
Sprockets for Drag Link DIN Chain

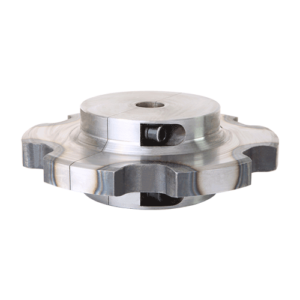

Sprockets are with or without teeth (return sprockets) and wear-resistant due to the hardening on the teeth. These sprockets have a symetrical hub and are divisible, making them easy to (dis) assemble. The following versions are available ex stock. Different dimensions are possible on request.
![](https://www.bechtel-wuppertal.com/wp-content/uploads/2023/04/8T2D-8R2D-aandrijf-en-getand-wiel-gootschraper-300x300.png)
Sprockets for double drag link chain available ex stock (parameters in mm) | ![]() | |||||
Pitch | Inner width | Bush-Ø | Pitch-Ø (p x n) | |||
6 teeth | 8 teeth | 7 teeth | ||||
63 | 22 | 18 | 126 | 164.63 | – | |
80 | 22 | 18 | 160 | 209.05 | – | |
100 | 22 | 18 | 200 | 261.31 | – | |
125 | 25 / 30 / 35 / 45 | 20 / 26 / 30 | 250 | 326.64 | – | |
150 | 30 / 45 | 22 / 30 | – | – | 345.71 | |
160 | 30 / 45 | 30 | 320 | 418.1 | – |
Pitch-diameter calculator
z = number of teeth, n = Pitch of the chain x n | |||||||||
Pitch Ø (in mm) = Pitch of the chain x n | |||||||||
z | n | z | n | z | n | z | n | z | n |
6 | 2 | 9 | 2.9238 | 12 | 3.8637 | 15 | 4.8097 | 18 | 5.7588 |
7 | 2.3048 | 10 | 3.2361 | 13 | 4.1786 | 16 | 5.1258 | 19 | 6.0755 |
8 | 2.6131 | 11 | 3.5495 | 14 | 4.494 | 17 | 5.4422 | 20 | 6.3925 |
View our calculations for Conveyor Chains
